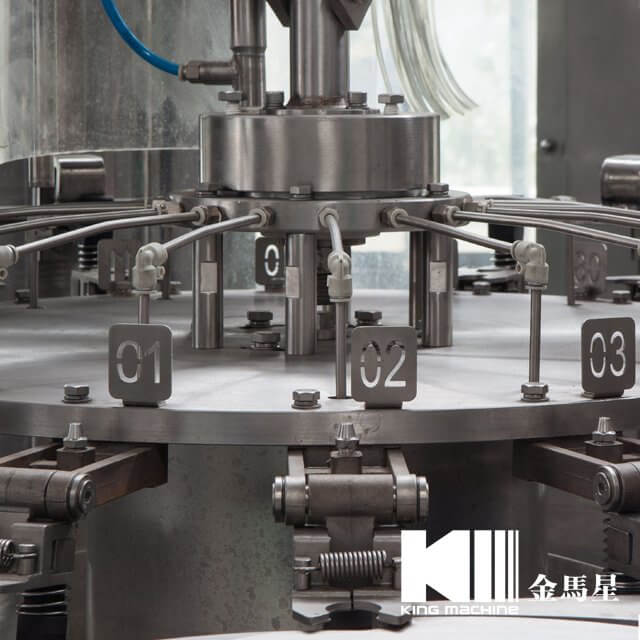

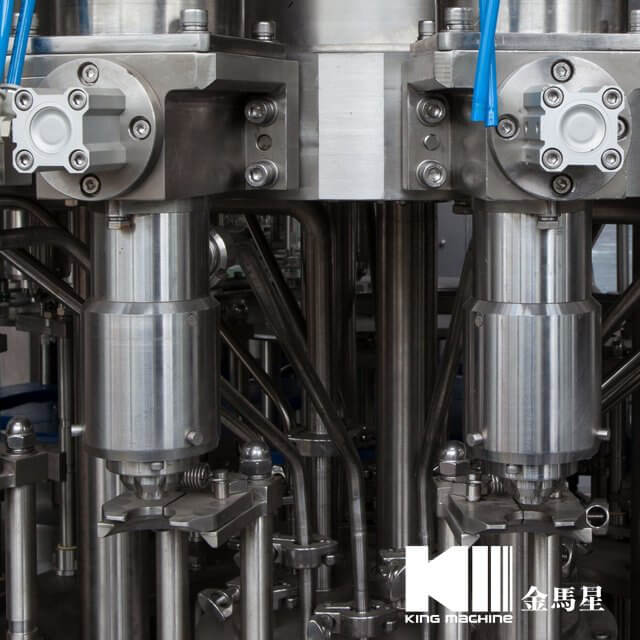

Product name:PET bottled Water Sauce Filling Machine
Rated Capacity:40-60BPM（based on 750ml, with 300ml, 500ml included, PEscrew cap）
Product: Sauce Jam
Filling temperature: about 82℃
Packing specification:
|
Containers and specifications |
|||||||||
|
Material |
Shape |
Filling volume（ml） |
Filling level（mm） |
Neck type |
|||||
|
PET |
Round Bottle |
750, with 500 and 300 included |
Distance to Bottle neck≤25mm |
PCO28 |
|||||
|
Adjustable specifications of the bottle type |
Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added. |
||||||||
|
Packaging system |
|||||||||
|
Container Label & Control Mode |
PVC shrink labeler |
Palletizing system |
|||||||
|
Hot Melt Roll-fed |
Half-label |
Packaging system |
Min.Spec |
Palletizing requirement |
Min.Spec |
||||
|
Full Label |
Automatic |
–—– |
—– |
Manual palletizer |
—— |
||||
|
Manual |
–—– |
||||||||
Note: above data needs to be confirmed with customer.
User Ambient Conditions：
Temperature：10～40℃；
Humidity：No dew
User Electrical Supply Specification：
Three-phase five-wire system；
F class insulation；
|
Raw material |
||||||||||
|
↓ |
||||||||||
|
Volumetric filling |
← |
Blow molder |
← |
Preform |
||||||
|
Air purification unit |
↓ |
|||||||||
|
→ |
Capping |
← |
Sterile air drying |
← |
Sterile water rinsing |
← |
Cap sorter |
← |
Cap elevator |
|
|
↓ |
↑ |
↑ |
||||||||
|
Air blow dryer |
① |
Cap |
||||||||
|
↓ |
||||||||||
|
Bottle body ink jet |
||||||||||
|
↓ |
||||||||||
|
Light |
||||||||||
|
↓ |
||||||||||
|
Sleeve labeling machine |
← |
Label |
||||||||
|
↓ |
||||||||||
|
Light |
||||||||||
|
↓ |
||||||||||
|
Full bottle conveying system |
→ |
Film Shrinker |
→ |
Case conveyor |
→ |
Manual palletizer |
→ |
Finished product storage |
||
Note：Above flow chart is only for reference, which can be amended by customer’s requirement.
Main Design Parameters:
|
Item |
Design parameters |
|
|
Product sterilization |
Tubular UHT sterilization |
By the customer |
|
Cap Sterilization condition |
Ozone rinsing |
≥10s |
|
Sterile compressed air drying |
2bar，≥2s |
|
|
Filling Temperature |
Ambient temperature |
|
|
Use of filling recycle water |
Customers determine |
|
|
Use of cap rinsing recycle water |
Customers determine |
|
Note：
Above technical parameters are basic data for equipment model determination and configuration in this proposal;
Any adjustment to these data,will lead the change of equipment model and configuration
